Insulating Mats

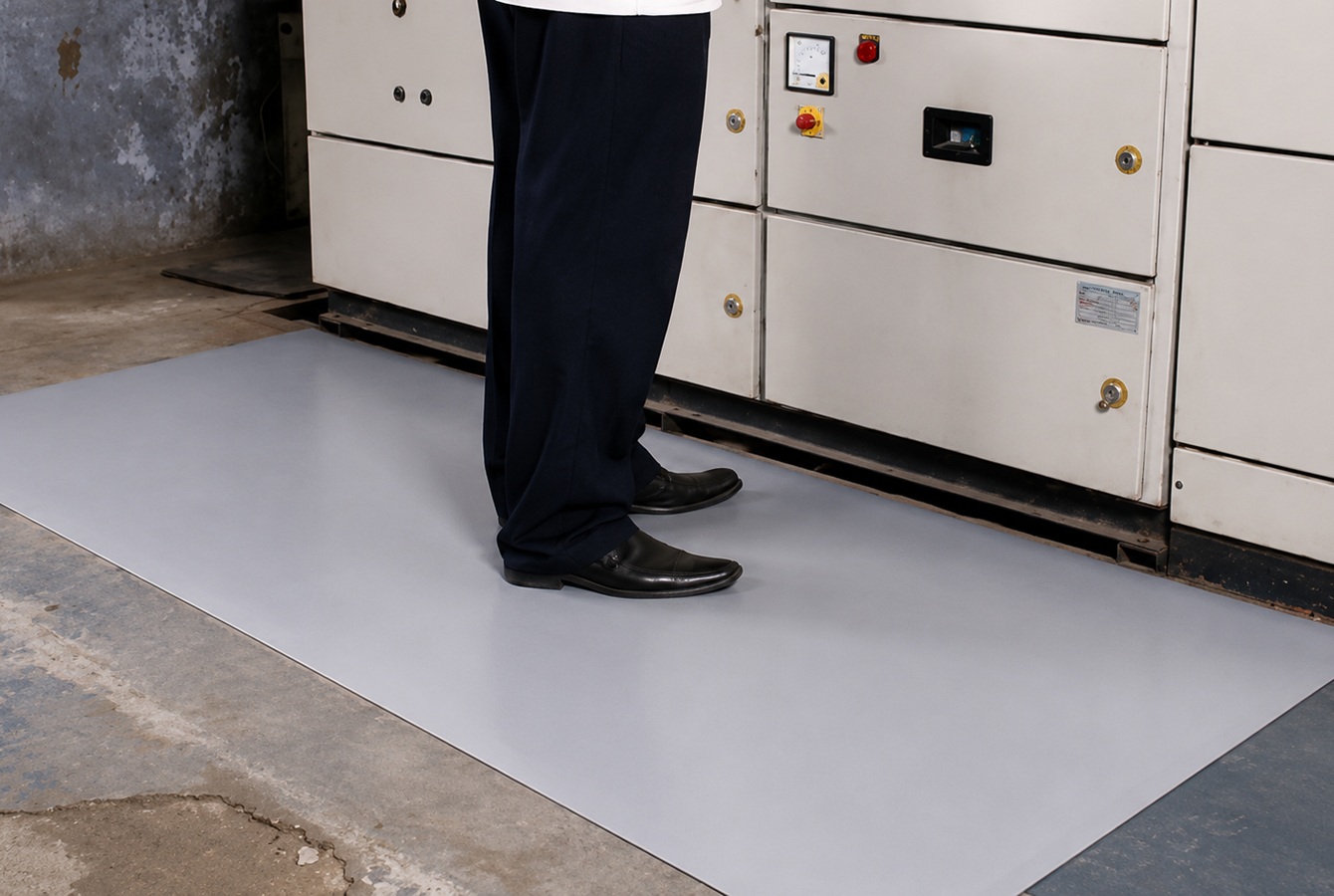

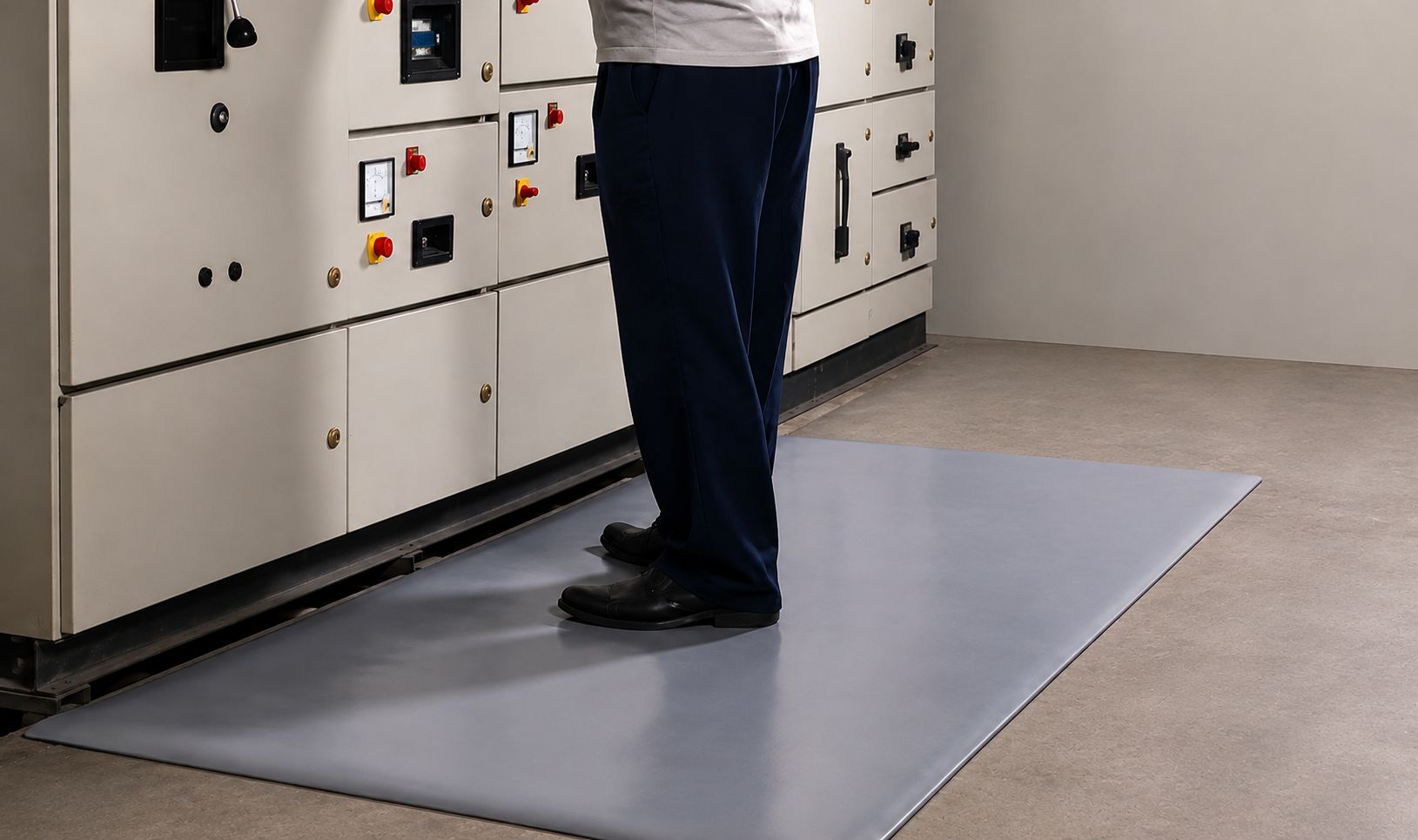

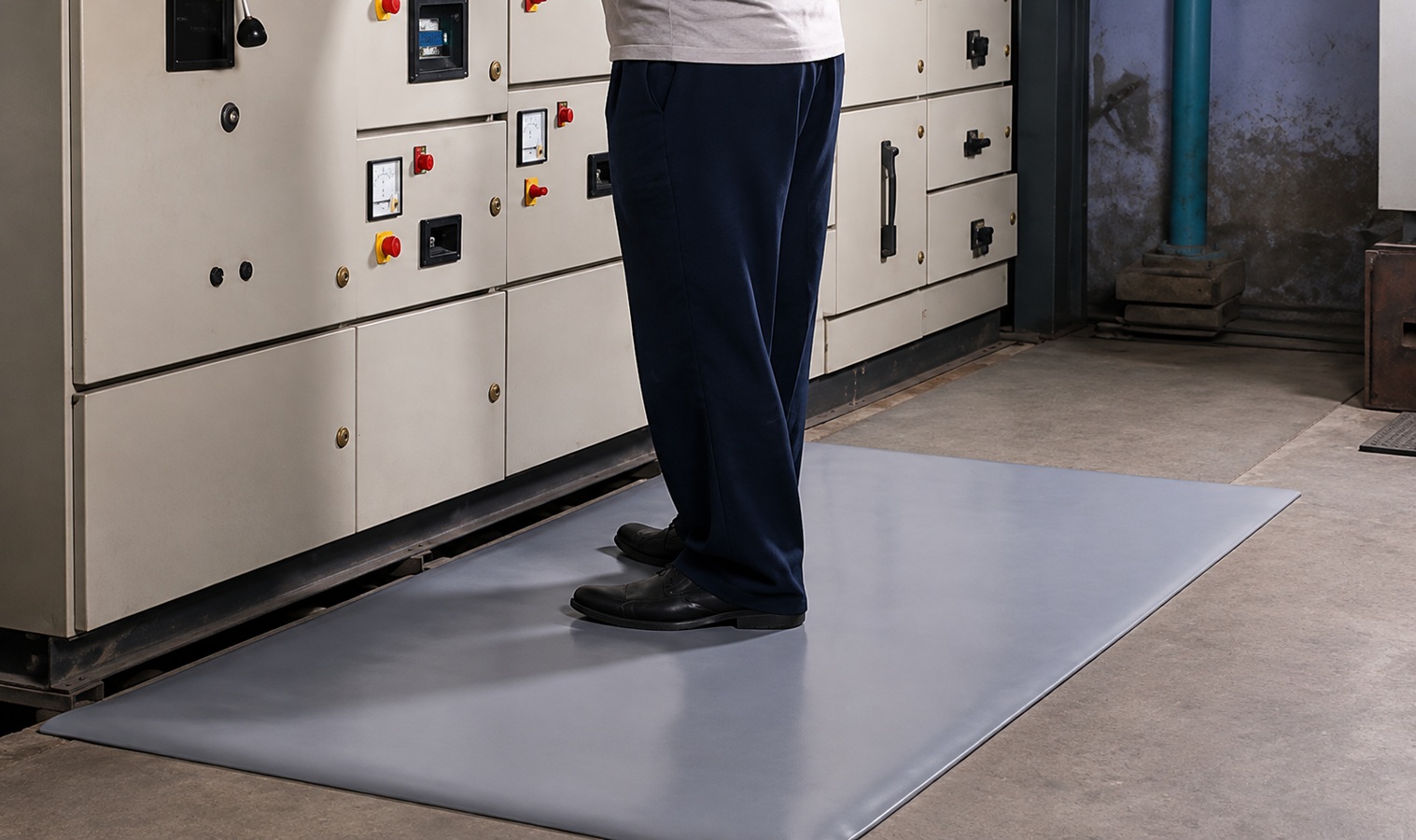

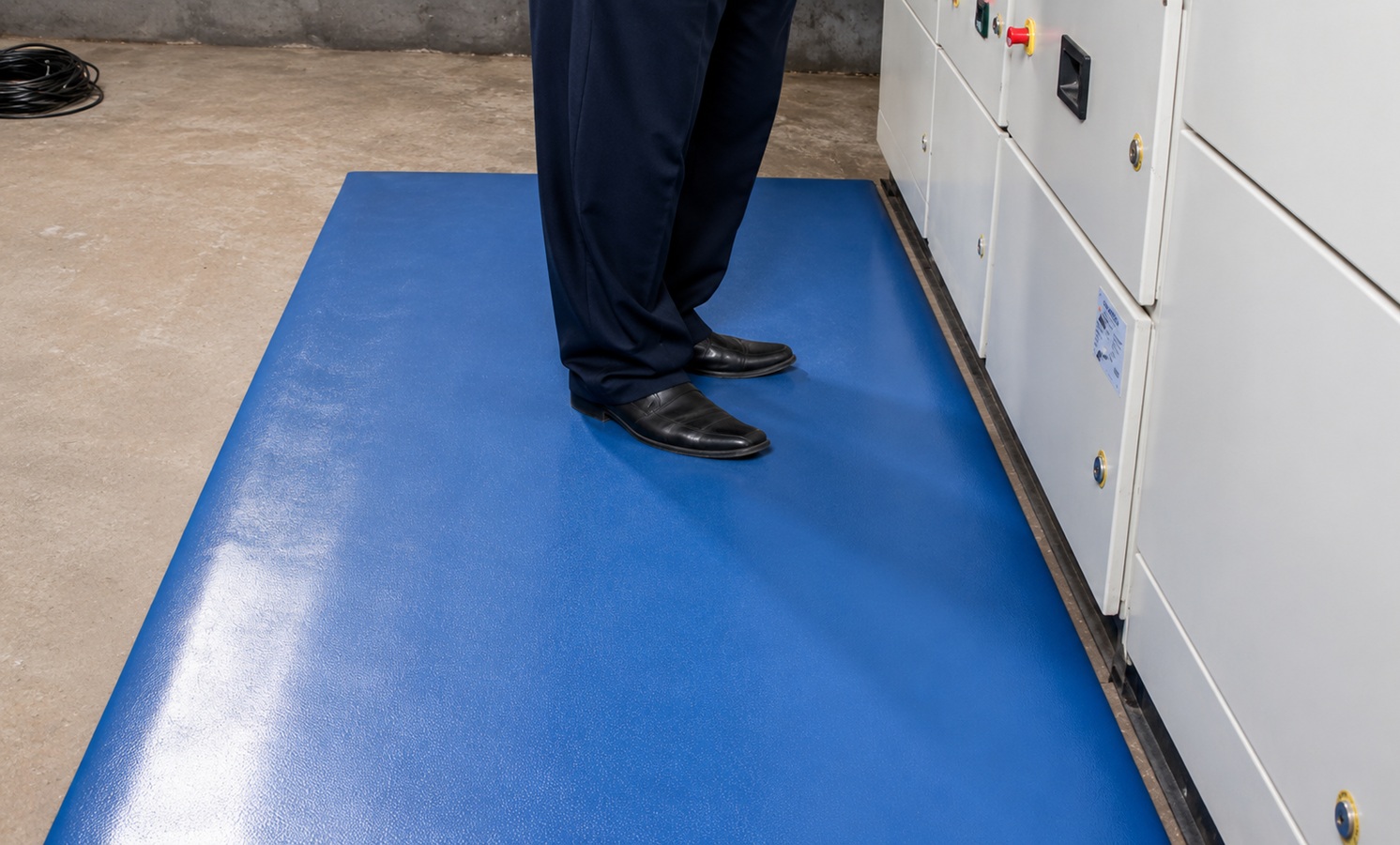

Electromat is highly recommended for total safety of workmen from electrical shock when working in or around environment like High Voltage Panels, Sub-station, Power Transformer Rooms, LT & HT Labs, near Busbars, near Control Panels etc.

Safety from electrical shock is required for workmen whether they are involved in Electricity Generation, Transmission, Distribution or its use.

There are distinct features that set Electromat – High Voltage Insulating Mats apart from the REST whether they are Traditional Rubber mats or any other kind of synthetic mats.

REQUEST A QUOTE

ELECTROMAT INSULATING MATS Vs. TRADITIONAL RUBBER MATS

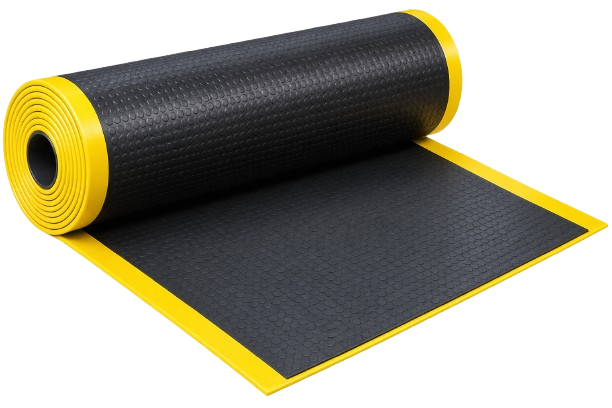

ELECTROMAT HIGH VOLTAGE MATS
NEW IS 15652 : 2006

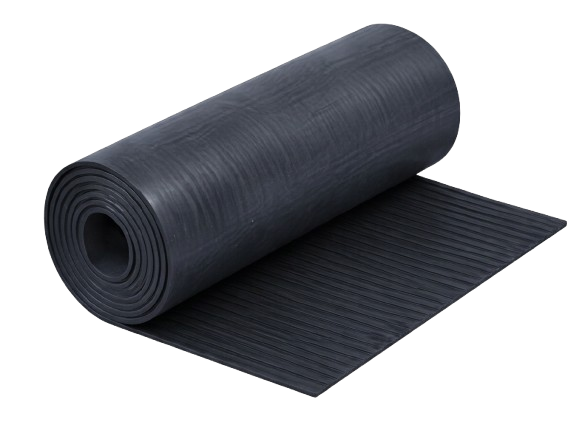

TRADITIONAL RUBBER MATS
OLD IS 5424 :1969

1 High electrical insulation resistance 10,00,000 mcga ohm when measured with 500 V meggar 1 Poor Electrical Insulation Resistance
2

100% shock proof under leakage current 10 mA

2

Unsafe in case of leakage of current. Tested from small electrodes as per IS:2584-1963 the value of the leakage current is 160 mA per sq. mtr.

3

Fire Retardant

3

Highly fire prone & fire encouraging.

4

No effect of :
Transformer oil
Acid
Alkali

Diesel
4

Adversely effected by :
Transformer oil
Acid
Alkali

Diesel
5 High dielectric strength of 45Kv for 1 minute for 2.5 mm thick mat 5 The withstand voltage is 15Kv for one minute
6 High breakdown voltage 45 Kv for 2.5 mm Mat 6 B.D. voltage 40 Kv
7 Moisture proof 7 Absorbs moisture
8 Pastable type permanent fixed smooth trolley movement 8 Cannot be fixed permanently
9 Washable – Easy to clean 9 Not possible to clean
10 High tensile & elongation properties to withstand good mechanical properties 10 No such properties as mat has to be removed for movement of trolleys
